Second resp. third axis

I’m trying to add a second y-axis but I don’t get it. The documentation

xmin : X origin coordinate in user's coordinates space.
xmax : X end axis coordinate in user's coordinates space.
ymin : Y origin coordinate in user's coordinates space.
ymax : Y end axis coordinate in user's coordinates space.
wmin : Lowest value for the tick mark labels written on the axis.
wmax : Highest value for the tick mark labels written on the axis.
ndiv : Number of divisions.
    ndiv=N1 + 100*N2 + 10000*N3
    N1=number of 1st divisions.
    N2=number of 2nd divisions.
    N3=number of 3rd divisions. e.g.:
        ndiv=0 –> no tick marks.
        ndiv=2 –> 2 divisions, one tick mark in the middle of the axis.
chopt : Drawing options (see below).
gridlength: grid length on main tick marks.

on https://root.cern.ch/doc/master/classTGaxis.html makes absolutely no sense to me.
For example, at the moment I have:

TGaxis *axis = new TGaxis(23, 5, 		// xmin // xmax
                                           23, 2, 		// ymin // ymax
			                     4, 2, 		// wmin // wmax
			                    10,"-", 10);	// ndiv // chop // gridlength

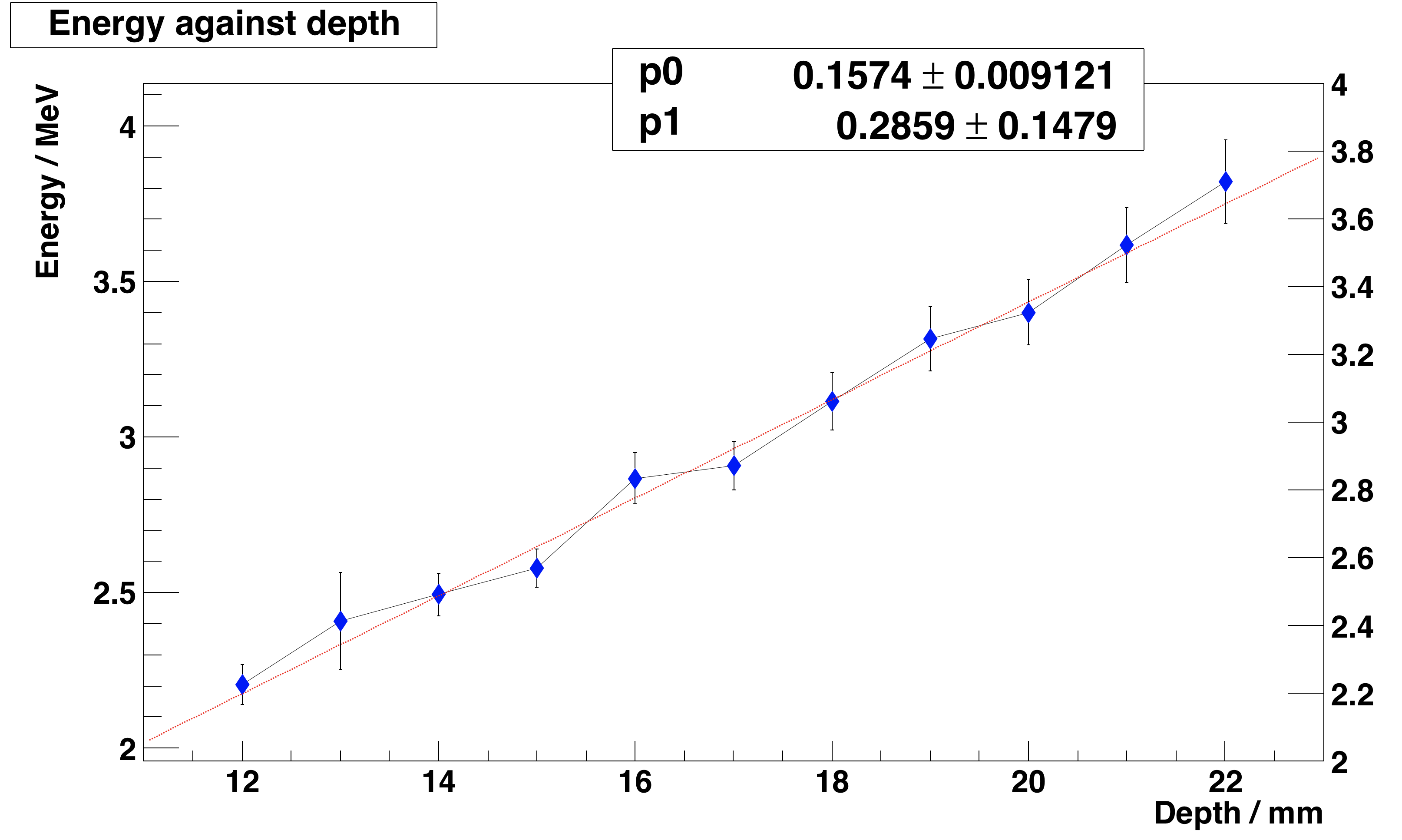

resulting in

This makes no sense at all :smiley:

complete code:

#include <TFile.h>
#include <TH1.h>
#include "TGaxis.h"

int intensity_vs_depth()
{
	const int points=11;
	double depth[points]={12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22};
	double Energy[points]={1980, 2141, 2209, 2276, 2504, 2537, 2700, 2858, 2925, 3097, 3258};
	double Energy_MEV[points]={2.2047, 2.408365, 2.494385, 2.57914, 2.86756, 2.909305, 3.1155, 3.31537, 3.400125, 3.617705, 3.82137 };
	double Energy2[points]={615.2, 666.66, 691.66, 716.66, 794.44, 805.55, 863.88, 921.11, 944.44, 1002.77, 1061.38};

	double depth_err[points]={0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0};
	double Energy_err[points]={288.0, 361.0, 291.4, 285.67, 302.4, 299.0, 310.35, 319.5, 319.65, 332.0, 343.3};
	double Energy_MEV_err[points]={0.06432, 0.156665, 0.068621, 0.06137255, 0.082536, 0.078235, 0.09259275, 0.1041675, 0.10435725, 0.11998, 0.133895};

	TCanvas* c=new TCanvas("Energy", "Energy", 1700, 1000);
	gROOT->SetStyle("Plain");
	gStyle->SetOptStat(0);
	// gStyle->SetOptFit(1);
	gStyle->SetOptFit(11);
  	gStyle->SetPadGridX(kTRUE);
  	gStyle->SetPadGridY(kTRUE);

	TGraphErrors *graph = new TGraphErrors(points, depth, Energy_MEV, depth_err, Energy_MEV_err);
	graph->GetXaxis()->SetTitle("Depth / mm");
	graph->GetYaxis()->SetTitle("Energy / MeV");
	graph->SetMarkerSize(3);
	graph->SetMarkerColor(kBlue);
	graph->SetMarkerStyle(33);
	graph->SetTitle("Energy against depth");

		TF1 *fit = new TF1("fit","([0]*x + [1])", 11, 23);

		fit->SetLineColor(kRed);
		fit->SetLineStyle(2);

		graph->Fit(fit);

	graph->Draw("APL");
	fit->Draw("SAME");

   //    TGaxis *axis = new TGaxis(23, 23, 23, 1, 23, 1, 50,"+");
   // TGaxis *axis = new TGaxis(23, 5, 23, 1, 23, 1, 50,"+");
   // TGaxis *axis = new TGaxis(23, 5, 23, 1, 5, 1, 50,"+");

   TGaxis *axis = new TGaxis(23, 5, 		// xmin // xmax
			     23, 2, 		// ymin // ymax
			     4, 2, 		// wmin // wmax
			     10,"-", 10);	// ndiv // chop // gridlength

   axis->SetName("axis");
   //axis->GetYaxis()->SetTitle("Energy w/o filters / MeV");
   axis->Draw();

	return 0;
}
void intensity_vs_depth() {
   const int points=11;
   double depth[points]={12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22};
   double Energy[points]={1980, 2141, 2209, 2276, 2504, 2537, 2700, 2858, 2925, 3097, 3258};
   double Energy_MEV[points]={2.2047, 2.408365, 2.494385, 2.57914, 2.86756, 2.909305, 3.1155, 3.31537, 3.400125, 3.617705, 3.82137 };
   double Energy2[points]={615.2, 666.66, 691.66, 716.66, 794.44, 805.55, 863.88, 921.11, 944.44, 1002.77, 1061.38};

   double depth_err[points]={0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0};
   double Energy_err[points]={288.0, 361.0, 291.4, 285.67, 302.4, 299.0, 310.35, 319.5, 319.65, 332.0, 343.3};
   double Energy_MEV_err[points]={0.06432, 0.156665, 0.068621, 0.06137255, 0.082536, 0.078235, 0.09259275, 0.1041675, 0.10435725, 0.11998, 0.133895};

   TCanvas* c=new TCanvas("Energy", "Energy", 1700, 1000);
   gROOT->SetStyle("Plain");
   gStyle->SetOptStat(0);
   gStyle->SetOptFit(11);

   TGraphErrors *graph = new TGraphErrors(points, depth, Energy_MEV, depth_err, Energy_MEV_err);
   graph->GetXaxis()->SetTitle("Depth / mm");
   graph->GetYaxis()->SetTitle("Energy / MeV");
   graph->SetMarkerSize(3);
   graph->SetMarkerColor(kBlue);
   graph->SetMarkerStyle(33);
   graph->SetTitle("Energy against depth");

   TF1 *fit = new TF1("fit","([0]*x + [1])", 11, 23);

   fit->SetLineColor(kRed);
   fit->SetLineStyle(2);

   graph->Fit(fit);

   graph->Draw("APL");
   gPad->Update();

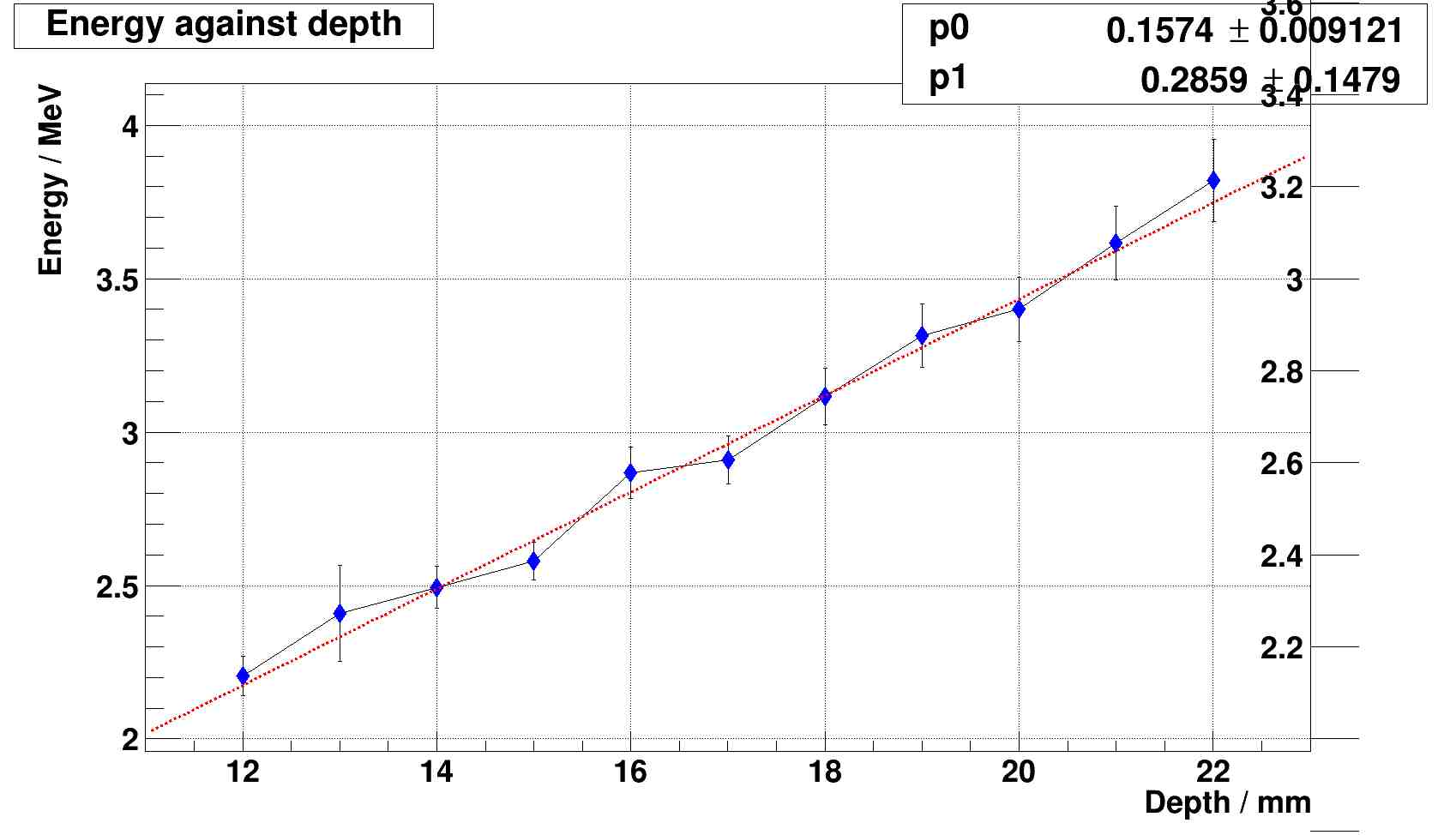

   TGaxis *axis = new TGaxis(gPad->GetUxmax(), gPad->GetUymin(),
                             gPad->GetUxmax(), gPad->GetUymax(),
                             2, 4,
                             10,"+L");
   axis->Draw();
}
