I am trying to use composite model to fit my data. I suggest that my data is gaus+poisson
. But my data scale is calibrated in such a way that signal poisson
and background gaus
should be shifted by an x0
and argument x
should be scaled by a some factor scale
. So I’ve created a function using RooClassFactory
:
Double_t ShiftedPoisson::evaluate() const
{
Double_t arg = 0.
if( scale > 0 )
{
return TMath::Poisson( (x - x0) / scale , lambda );
}
}
Then I try to fit my data with this function and ordinary gaussian RooGaussian
. I provide a whole code in order to complete the picture. Important blocks are emphasized.
void ECaen()
{
TFile* f = TFile::Open( "ENoise/tree_noise.root", "READ" );
TH1F* hist = (TH1F*)f->Get("E");
//DATA VARIABLE = integral
RooRealVar integral( "integral", "integral, LSB (0.49V)", 0, 500 );
RooDataHist data( "data", "dataset from tree", integral, hist );
RooRealVar pMean( "pMean", "Pedestal mean", 100, 90, 250 );
RooRealVar pSigma( "pSigma", "Pedestal sigma", 10, 0, 60 );
RooGaussian pGaus( "pGaus", "Pedestal Peak", integral, pMean, pSigma );
//IMPORTANT!!!
RooRealVar x0( "x0", "Poisson shift", 150, 100, 300 );
RooRealVar scale( "scale", "Poisson scale factor", 10, 1, 1000 );
RooRealVar lambda( "lambda", "Poisson average", 1, 1, 200 );
//THIS IS MY FUNCTION
ShiftedPoisson sig( "sig", "Signal", integral, x0, lambda, scale );
RooRealVar fSig( "fSig", "fSig", 0.5, 0, 1 );
RooAddPdf model( "model", "model", RooArgList( pGaus, sig ), fSig );
//IMPORTANT!!!
lambda.setConstant( kTRUE );// <---- THIS IS BECAUSE PARAMETER LAMBDA IS THE MEAN OF single ELECTRON NOISE
model.fitTo( data, Range( 50, 280.) );
//_mean = ppMean.getVal();
//_sigma = ppSigma.getVal();
#ifdef DRAW
RooPlot* xFrame = integral.frame( Title( "Empty case" ) );
data.plotOn( xFrame );
model.plotOn( xFrame );
model.plotOn( xFrame, Components(pGaus), LineStyle( kDashed ) );
model.plotOn( xFrame, Components(sig), LineStyle( kDashed ) );
TCanvas* c = new TCanvas( "c", "c", 800, 600 );
xFrame->Draw();
c->SetLogy();
xFrame->GetYaxis()->SetRangeUser( 1, 2 * hist->GetMaximum() );
#endif
return;
}
And how is my data looks like:

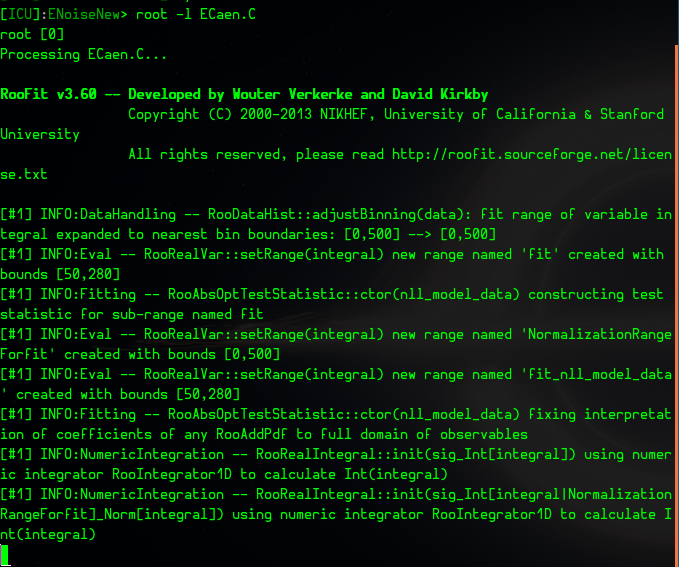

When I try to run this code I am either getting a freezed terminal:
or very strange things like:
I do not know why is this so? Can you help?
