How to set axis label

___
ROOT Version: Not Provided
Platform: Not Provided
Compiler: Not Provided


May someone teach me how to set a axis like this picture which Xaxis has same length but different labels?
Please, I have tried many ways but they didn’t work.
thank you!

{

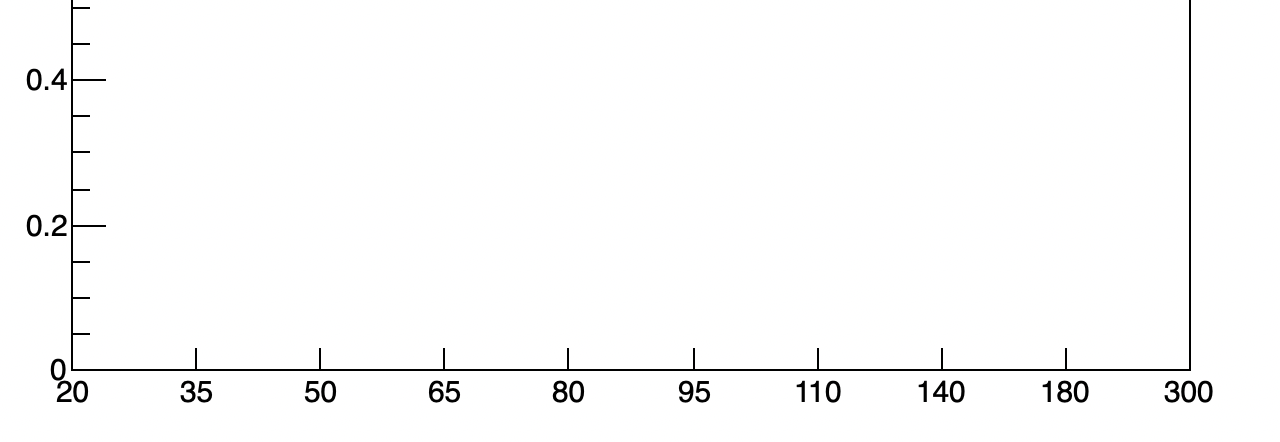

   auto h = new TH1F("h","h",100,0.,1.);
   h->Draw();
   auto Xaxis = h->GetXaxis();
   Xaxis->SetNdivisions(-9);
   Xaxis->ChangeLabel(1,-1,-1,-1,-1,-1,"20");
   Xaxis->ChangeLabel(2,-1,-1,-1,-1,-1,"35");
   Xaxis->ChangeLabel(3,-1,-1,-1,-1,-1,"50");
   Xaxis->ChangeLabel(4,-1,-1,-1,-1,-1,"65");
   Xaxis->ChangeLabel(5,-1,-1,-1,-1,-1,"80");
   Xaxis->ChangeLabel(6,-1,-1,-1,-1,-1,"95");
   Xaxis->ChangeLabel(7,-1,-1,-1,-1,-1,"110");
   Xaxis->ChangeLabel(8,-1,-1,-1,-1,-1,"140");
   Xaxis->ChangeLabel(9,-1,-1,-1,-1,-1,"180");
   Xaxis->ChangeLabel(10,-1,-1,-1,-1,-1,"300");
}

1 Like

Thank you!
It works!

1 Like
