Hi all,
I’m using the TLatex class to make a label, but I’d like it to read “Average” [string] with only one TLatex. The label is in the bottom right.
Thanks!

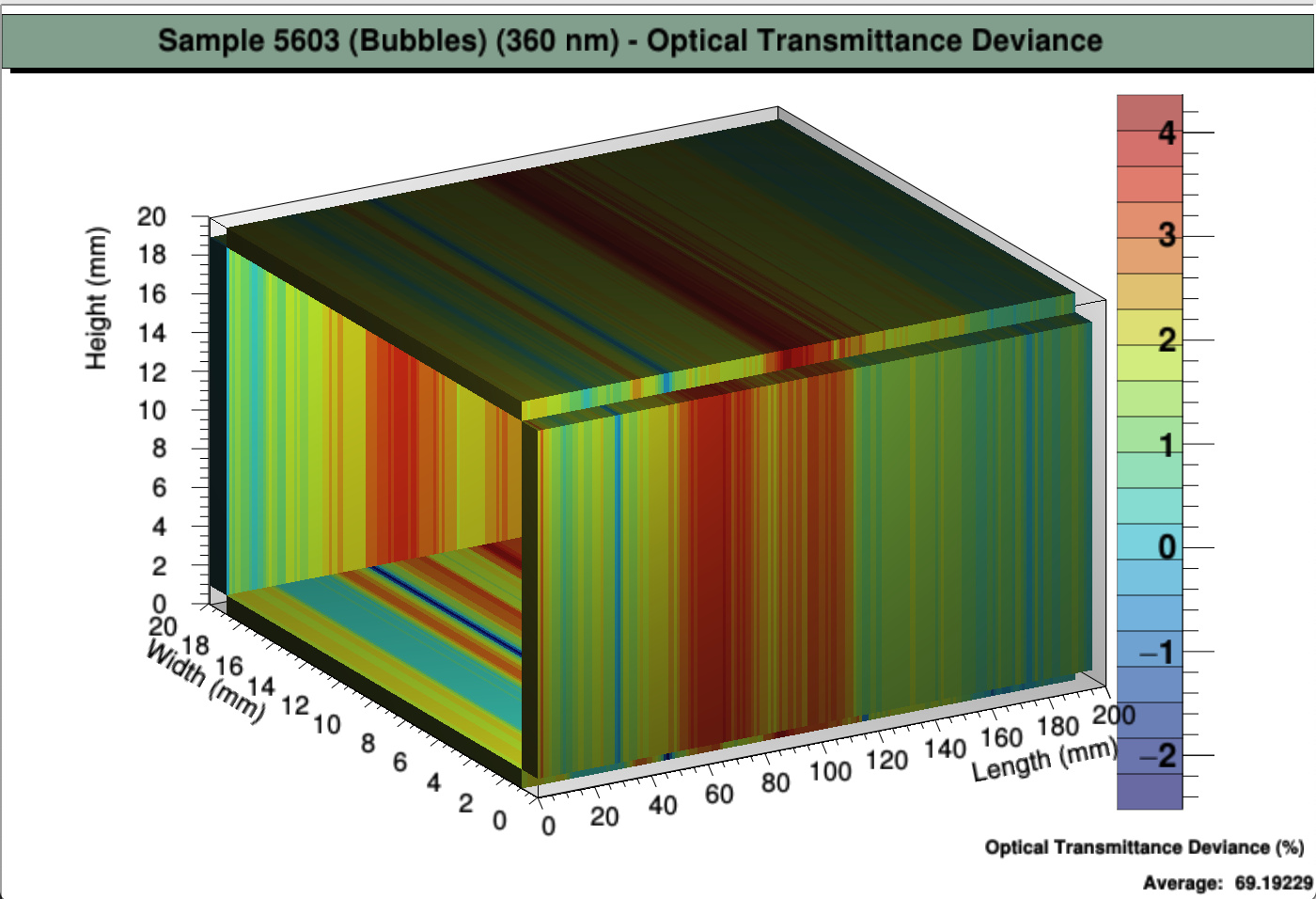

Here’s what I have so far.
Relevant code:
char average[64];
int ret = snprintf(average, sizeof average, "%f", avg);
if (ret < 0) {
return EXIT_FAILURE;
}
if (ret >= sizeof average) {
//Result was truncated - resize the buffer and retry.
}
TLatex *avg2 = new TLatex(0.94,0.01, average);
avg2->SetNDC();
avg2->SetTextSize(.015);
avg2->SetLineWidth(2);
avg2->Draw();
title->SetFillColor(32);
title->Draw();
TLatex *avg3 = new TLatex(0.87,0.01,"Average:");
avg3->SetNDC();
avg3->SetTextSize(.015);
avg3->SetLineWidth(2);
avg3->Draw();
title->SetFillColor(32);
title->Draw();
All code:
namespace {
Double_t my_transfer_function(const Double_t *x, const Double_t * /*param*/)
{
// Bin values in our example range from -2 to 1.
// Let's make values from -2. to -1.5 more transparent:
if (*x>-.0001 && *x<.0001)
return 0.001;
return 1.;
}
}
void glgraph(){
int data = 0;
ifstream file { "5603_bubbles.txt" };
if (!file.is_open()) return -1;
double transArray [200][4]{};
for (int i{}; i != 200; ++i) {
for (int j{}; j != 4; ++j) {
file >> transArray[i][j];
}
}
float avg = 0.0;
float sum = 0.0;
int size;
for (int i{}; i != 200; ++i) {
for (int j{}; j != 4; ++j) {
size = sizeof(transArray) / sizeof(transArray[i][j]
);
sum += transArray[i][j];
}
}
avg = ((float)sum)/size;
double dev[size][4];
cout << "Average Optical Transmittance " << avg << "\n";
char average[64];
int ret = snprintf(average, sizeof average, "%f", avg);
if (ret < 0) {
return EXIT_FAILURE;
}
if (ret >= sizeof average) {
//Result was truncated - resize the buffer and retry.
}
for (int i{}; i != 195; ++i) {
for (int j{}; j != 4; ++j) {
dev[i][j]= transArray[i][j] - avg;
}}
TH3F *hist = new TH3F("glvoxel", "OT", (size/4), 0., (size/4), 20, 0., 20., 20, 0., 20.);
for (UInt_t i = 0; i < 200; ++i) {
for (Int_t j = 1; j< 19;j++){
hist->Fill(i, j, 0., dev[i][0]); //Side 1
hist->Fill(i, 19.9, j, dev[i][1]); //Side 2
hist->Fill(i, j, 19.9, dev[i][2]); // Side 3
hist->Fill(i, 0.1,j , dev[i][3]); // Side 4
}
}
gStyle->SetCanvasPreferGL(1);
hist->Draw("glcolz");
hist->GetXaxis()->SetTitle("Length (mm)");
hist->GetXaxis()->SetTitleOffset(1.5);
hist->GetYaxis()->SetTitle("Width (mm)");
hist->GetYaxis()->SetTitleOffset(1.5);
hist->GetZaxis()->SetTitle("Height (mm)");
hist->GetZaxis()->SetTitleOffset(1.5);
hist->GetZaxis()->SetRangeUser(-10,0);
hist->SetTitle("OT");
gStyle->SetCanvasPreferGL(1);
gStyle->SetPalette(kRainBow);
hist->SetFillColor(9);
hist->Draw("glcolz");
TPaveLabel *title = new TPaveLabel(-1., 0.86, 1., 0.98, "Sample 5603 (Bubbles) (360 nm) - Optical Transmittance Deviance");
TLatex *tex = new TLatex(0.75,0.05,"Optical Transmittance Deviance (%)");
tex->SetNDC();
tex->SetTextSize(.015);
tex->SetLineWidth(2);
tex->Draw();
title->SetFillColor(32);
title->Draw();
TLatex *avg2 = new TLatex(0.94,0.01, average);
avg2->SetNDC();
avg2->SetTextSize(.015);
avg2->SetLineWidth(2);
avg2->Draw();
title->SetFillColor(32);
title->Draw();
TLatex *avg3 = new TLatex(0.87,0.01,"Average:");
avg3->SetNDC();
avg3->SetTextSize(.015);
avg3->SetLineWidth(2);
avg3->Draw();
title->SetFillColor(32);
title->Draw();
//Now, specify the transfer function.
TList * lf = hist->GetListOfFunctions();
if (lf) {
TF1 * tf = new TF1("TransferFunction", my_transfer_function);
lf->Add(tf);
}
}
