No match between different garfield++ versions: /Heed/fe55.C example(?)

gtsileda · June 7, 2025, 1:47pm

Dear experts,

I run the same example /Examples/Heed/fe55.C
with a version back in February 2024 and with the latest one available from today
via git clone garfield / garfieldpp · GitLab
Unfortunately the results imply a change in physics since with the last version the escape peak of Argon in not visible(???).

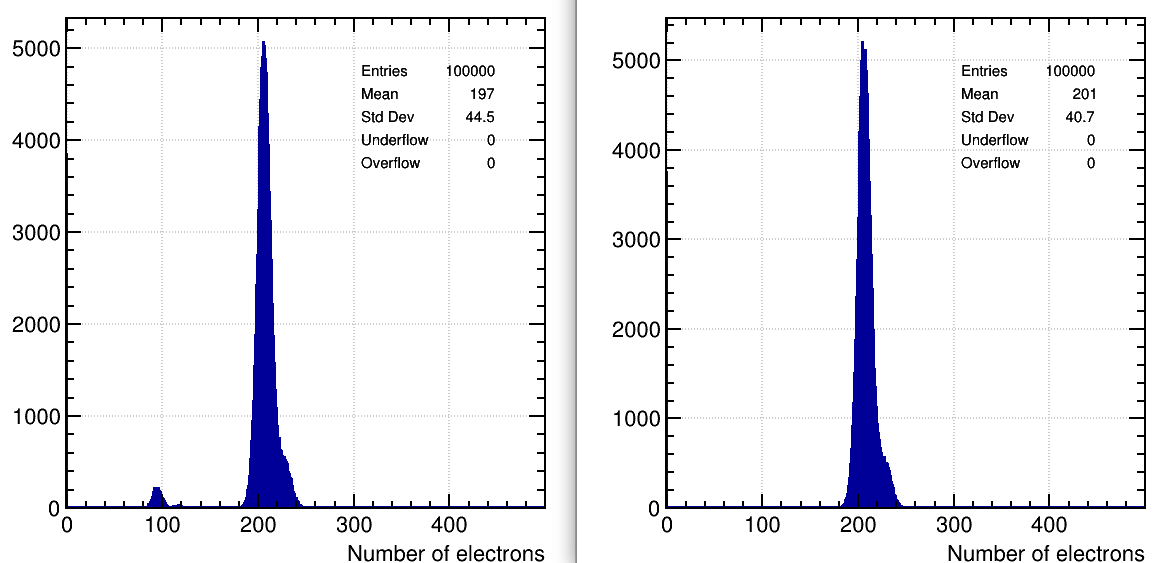

In the inserted picture the left one is with a previous version back in the beginning of 2024 and the right one what I am getting with the last version…
How I could get access on a previous version of garfield++?
All my results so far were well aligned with that older version and I wonder what has changed so far…

Best regards

Georgios

hschindl · June 7, 2025, 2:12pm

Hi,
thanks a lot for reporting this! I’ll look into it…

gabrielribcesario · June 7, 2025, 6:42pm

Hello,

@hschindl I thought I’d let you know that I got the same results as OP when running the current HEAD. Checking out to 03b4deb6 (May 30, 2025) still yields the “good” results, so the behaviour is likely the result of one of the newer commits.

@gtsileda From inside your Garfield++ installation folder ($GARFIELD_INSTALL/..) run:

git checkout 03b4deb6
cd build
cmake ..
make
make install

You can run git pull origin master if you’d like to revert back to the most recent version.
