ROOT Version: 6.36.06
Platform: Linux
Compiler: gcc

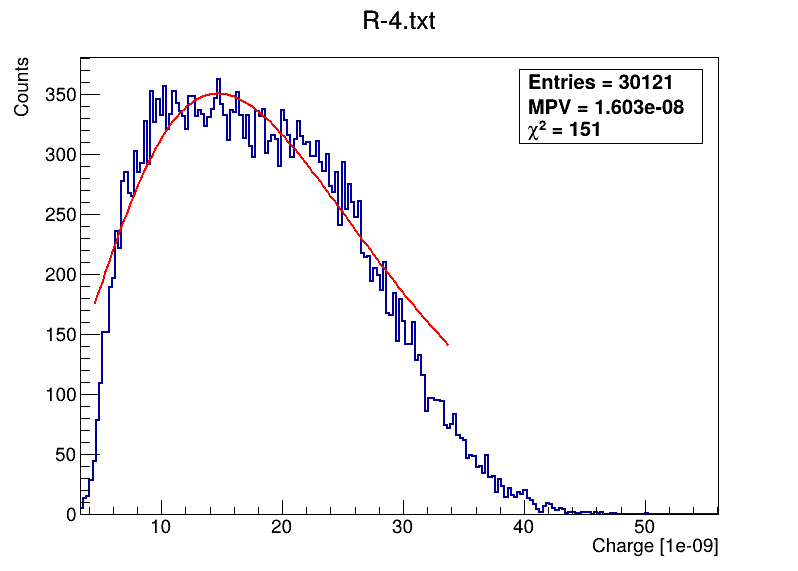

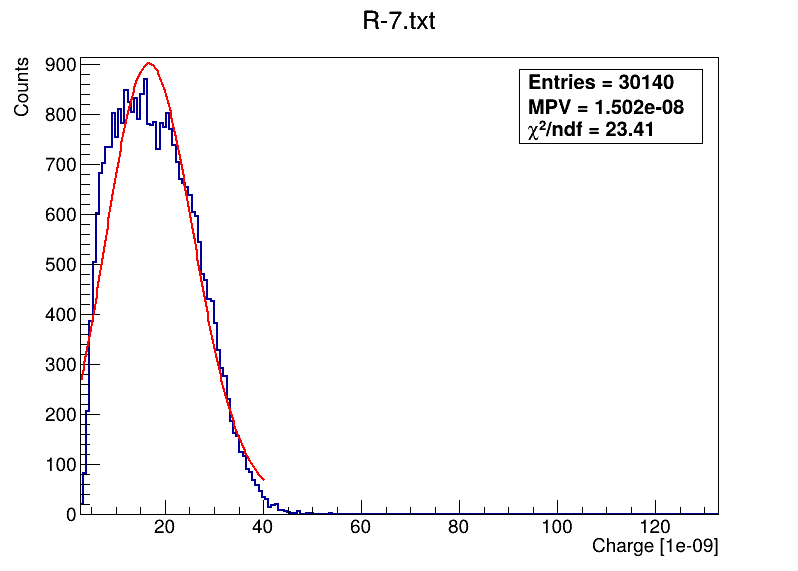

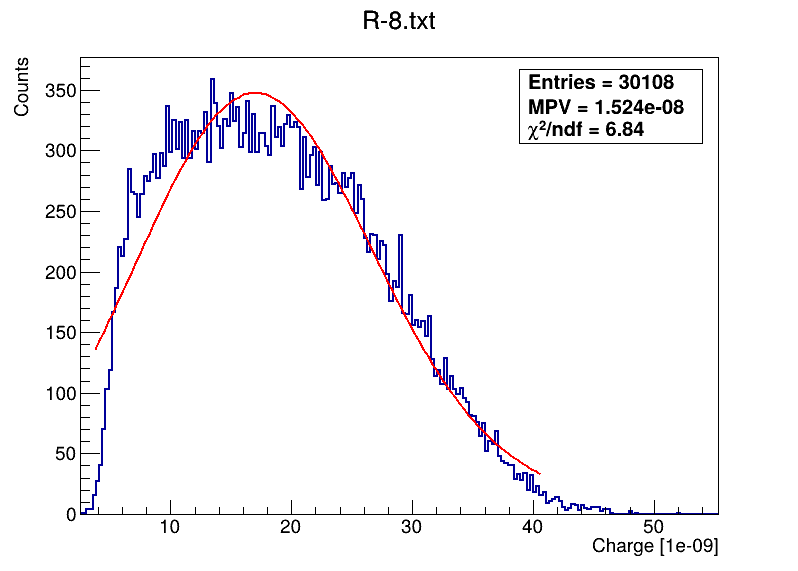

I have oscilloscope data, and I need to plot a histogram with Langaus fit. But histogram is wider than my fit and they are not converged well.
How can I optimize my code for better fit the histogram data?
Thanks
This is the code what I am using:
#include "TSystemDirectory.h"
#include "TSystemFile.h"
#include "TList.h"
#include "TCollection.h"
#include "TCanvas.h"
#include "TH1D.h"
#include "TF1.h"
#include "TString.h"
#include "TROOT.h"
#include "TStyle.h"
#include "TMath.h"
#include "TGraphErrors.h"
#include "TLegend.h"
#include "TPaveText.h"
#include <fstream>
#include <iostream>
#include <vector>
#include <string>
#include <limits>
#include <map>
#include <sstream>
#include <cmath>
// global path for CSV with fit results
static TString gResultsPath;
// --------------------------------------------------------
// Langau: Landau ⊗ Gaussian convolution
// par[0] = Landau width
// par[1] = MPV
// par[2] = Area (overall norm)
// par[3] = Gaussian sigma
// --------------------------------------------------------
Double_t langaufun(Double_t *x, Double_t *par)
{
// numeric convolution
const Double_t invsq2pi = 0.3989422804014327; // 1 / sqrt(2*pi)
const Double_t np = 100.0; // number of steps
const Double_t sc = 5.0; // convolution range in sigma
Double_t xx = x[0];
Double_t mpc = par[1];
Double_t width = par[0];
Double_t sigma = par[3];
Double_t area = par[2];
Double_t xlow = xx - sc*sigma;
Double_t xupp = xx + sc*sigma;
Double_t step = (xupp - xlow)/np;
Double_t sum = 0.0;
Double_t xval = xlow + 0.5*step;
for (int i = 0; i < np; ++i) {
Double_t land = TMath::Landau(xval, mpc, width, true); // normalized
Double_t arg = (xx - xval)/sigma;
Double_t gaus = TMath::Exp(-0.5*arg*arg);
sum += land * gaus;
xval += step;
}
return area * step * invsq2pi / sigma * sum;
}
// --------------------------------------------------------
// Read amplitudes and convert to "nano units":
// An = A / 1e-9 (so x-axis is 0–60 instead of 0–6e-8)
// --------------------------------------------------------
bool ReadAmplitudesNano(const std::string &filepath, std::vector<double> &sNano)
{
std::ifstream in(filepath.c_str());
if (!in.is_open()) {
std::cerr << "Cannot open file: " << filepath << std::endl;
return false;
}
std::string line;
bool dataSection = false;
while (std::getline(in, line)) {
if (line.find("Time Ampl") != std::string::npos) {
dataSection = true;
break;
}
}
if (!dataSection) {
std::cerr << "Did not find 'Time Ampl' in file: " << filepath << std::endl;
return false;
}
long long index;
double ampl;
while (in >> index >> ampl) {
ampsNano.push_back(ampl / 1e-9); // "nano" units
}
if (ampsNano.empty()) {
std::cerr << "No amplitude data in file: " << filepath << std::endl;
return false;
}
return true;
}
void FitPeakLangauAndSave(TH1D *h, const TString &fnameTxt, const TString &pngPath)
{
if (!h) return;
gStyle->SetOptStat(0);
gStyle->SetOptFit(0);
double xmin = h->GetXaxis()->GetXmin();
double xmax = h->GetXaxis()->GetXmax();
int nbins = h->GetNbinsX();
int maxBin = h->GetMaximumBin();
double mpv0 = h->GetBinCenter(maxBin);
double maxCnt = h->GetMaximum();
// ----------------------------------------------------
// 1) Define a "core" region: bins above some fraction
// of the maximum (peak area only).
// Tune CORE_FRAC if you want narrower/wider fits.
// ----------------------------------------------------
const double CORE_FRAC = 0.40; // try 0.4–0.5
double thrCore = CORE_FRAC * maxCnt;
int leftCoreBin = maxBin;
int rightCoreBin = maxBin;
while (leftCoreBin > 1 && h->GetBinContent(leftCoreBin) > thrCore)
--leftCoreBin;
while (rightCoreBin < nbins && h->GetBinContent(rightCoreBin) > thrCore)
++rightCoreBin;
double fitMin = h->GetBinLowEdge(leftCoreBin);
double fitMax = h->GetBinLowEdge(rightCoreBin + 1);
if (fitMin < xmin) fitMin = xmin;
if (fitMax > xmax) fitMax = xmax;
// ----------------------------------------------------
// 2) Estimate "core RMS" only from the peak region,
// to get better starting values.
// ----------------------------------------------------
double sum = 0.0;
double sumx = 0.0;
double sumx2 = 0.0;
for (int bin = leftCoreBin; bin <= rightCoreBin; ++bin) {
double c = h->GetBinContent(bin);
double xc = h->GetBinCenter(bin);
sum += c;
sumx += c * xc;
sumx2 += c * xc * xc;
}
double meanCore = (sum > 0.0) ? sumx / sum : mpv0;
double varCore = (sum > 0.0) ? (sumx2 / sum - meanCore*meanCore) : 0.0;
double rmsCore = (varCore > 0.0) ? std::sqrt(varCore) : (xmax - xmin)/20.0;
double width0 = 0.7 * rmsCore;
double sigma0 = 0.7 * rmsCore;
double area0 = sum; // ~ area under the core
// ----------------------------------------------------
// 3) Langau fit, restricted to the core region
// ----------------------------------------------------
TF1 *f = new TF1("f_langG", langaufun, fitMin, fitMax, 4);
f->SetParNames("Width","MPV","Area","Sigma");
f->SetParameters(width0, mpv0, area0, sigma0);
f->SetParLimits(0, 0.1 * rmsCore, 3.0 * rmsCore); // width
f->SetParLimits(1, mpv0 - 1.0*rmsCore, mpv0 + 1.0*rmsCore); // MPV
f->SetParLimits(2, 0.01 * area0, 1e5 * area0); // area
f->SetParLimits(3, 0.1 * rmsCore, 3.0 * rmsCore); // sigma
TFitResultPtr r = h->Fit(f, "RQS"); // R: use range, Q: quiet, S: store
// OPTIONAL: one retry if it failed badly
if (r->Status() != 0) {
f->SetParameters(width0, mpv0, area0, sigma0);
h->Fit(f, "RQB"); // fallback fit
}
// ----------------------------------------------------
// 4) Draw and save – we keep the SAME (peak-only) range
// so the red curve stops before the long tail.
// ----------------------------------------------------
TCanvas *c = new TCanvas(TString(h->GetName()) + "_c",
TString(h->GetName()) + "_c",
800, 600);
h->GetXaxis()->SetTitle("Charge [1e-09]");
h->GetYaxis()->SetTitle("Counts");
h->SetLineWidth(2);
h->Draw("HIST");
f->SetRange(fitMin, fitMax); // NO extension into the tail
f->SetLineColor(kRed);
f->SetLineWidth(2);
f->Draw("SAME");
double entries = h->GetEntries();
double mpv_scaled = f->GetParameter(1);
double mpv_phys = mpv_scaled * 1e-9;
double chi2 = f->GetChisquare();
TPaveText *pt = new TPaveText(0.65, 0.75, 0.88, 0.88, "NDC");
pt->SetFillColor(0);
pt->SetBorderSize(1);
pt->SetTextAlign(12);
pt->AddText(Form("Entries = %.0f", entries));
pt->AddText(Form("MPV = %.3e", mpv_phys));
pt->AddText(Form("#chi^{2} = %.3g", chi2));
pt->Draw();
TString pngName = pngPath + "/" + TString(h->GetName()) + "_peak.png";
c->SaveAs(pngName);
// Save results to CSV
std::ofstream ofs(fnameTxt.Data(), std::ios::app);
ofs << h->GetName() << ","
<< mpv_phys << ","
<< entries << ","
<< chi2 << "\n";
ofs.close();
delete c;
}
// --------------------------------------------------------
// Make normalized MPV vs distance plot with exponential
// fits for left (L-*) and right (R-*).
// --------------------------------------------------------
void PlotNormalized(const char *dirpath = ".")
{
TString csvPath = TString::Format("%s/fit_results.csv", dirpath);
std::ifstream in(csvPath.Data());
if (!in.is_open()) {
std::cerr << "Cannot open results file: " << csvPath << std::endl;
return;
}
std::string header;
std::getline(in, header); // skip header
struct Row {
std::string fname;
double mpv = 0.0; // physical units
double entries = 0.0;
double chi2 = 0.0;
};
std::map<int, Row> left, right;
double mpvLref = -1.0; // MPV of L-1
double mpvRref = -1.0; // MPV of R-9
std::string line;
while (std::getline(in, line)) {
if (line.empty()) continue;
std::stringstream ss(line);
std::string fname, s_mpv, s_entries, s_chi2;
std::getline(ss, fname, ',');
std::getline(ss, s_mpv, ',');
std::getline(ss, s_entries, ',');
std::getline(ss, s_chi2, ',');
Row r;
r.fname = fname;
r.mpv = std::atof(s_mpv.c_str());
r.entries = std::atof(s_entries.c_str());
r.chi2 = std::atof(s_chi2.c_str());
if (fname.size() < 3) continue;
char side = fname[0];
std::size_t dashPos = fname.find('-');
if (dashPos == std::string::npos) continue;
std::size_t dotPos = fname.find('.', dashPos + 1);
if (dotPos == std::string::npos) dotPos = fname.size();
int idx = std::atoi(fname.substr(dashPos + 1,
dotPos - dashPos - 1).c_str());
if (idx <= 0) continue;
if (side == 'L') {
left[idx] = r;
if (idx == 1) mpvLref = r.mpv;
} else if (side == 'R') {
right[idx] = r;
if (idx == 9) mpvRref = r.mpv;
}
}
in.close();
if (left.empty() && right.empty()) {
std::cerr << "No L-* or R-* entries in results file." << std::endl;
return;
}
int nL = left.size();
int nR = right.size();
std::vector<double> xL(nL), yL(nL), exL(nL, 0.3), eyL(nL);
std::vector<double> xR(nR), yR(nR), exR(nR, 0.3), eyR(nR);
int i = 0;
for (auto &kv : left) {
int idx = kv.first;
const Row &r = kv.second;
xL[i] = static_cast<double>(idx); // distance in cm
yL[i] = (mpvLref > 0.0) ? (r.mpv / mpvLref) : 0; // normalized
eyL[i] = (r.entries > 0.0) ? 1.0 / std::sqrt(r.entries) : 0.0;
++i;
}
i = 0;
for (auto &kv : right) {
int idx = kv.first;
const Row &r = kv.second;
xR[i] = static_cast<double>(idx);
yR[i] = (mpvRref > 0.0) ? (r.mpv / mpvRref) : 0;
eyR[i] = (r.entries > 0.0) ? 1.0 / std::sqrt(r.entries) : 0.0;
++i;
}
double maxX = 0.0;
if (!xL.empty())
maxX = std::max(maxX, *std::max_element(xL.begin(), xL.end()));
if (!xR.empty())
maxX = std::max(maxX, *std::max_element(xR.begin(), xR.end()));
if (maxX <= 0) maxX = 10.0;
// no default fit box here
gStyle->SetOptFit(0);
TCanvas *c = new TCanvas("c_norm", "Normalized MPV vs distance", 800, 600);
TGraphErrors *gL = nullptr;
TGraphErrors *gR = nullptr;
if (nL > 0) {
gL = new TGraphErrors(nL, xL.data(), yL.data(), exL.data(), eyL.data());
gL->SetName("gLeft");
gL->SetTitle("");
gL->SetMarkerStyle(20);
gL->SetMarkerColor(kBlue+1);
gL->SetLineColor(kBlue+1);
gL->Draw("AP");
gL->GetXaxis()->SetTitle("Distance [cm]");
gL->GetYaxis()->SetTitle("MPV / reference MPV");
gL->GetYaxis()->SetRangeUser(0.75, 1.05);
// exponential fit: y = A * exp(-x / lambda)
TF1 *fL = new TF1("fL", "[0]*TMath::Exp(-x/[1])", 0.0, maxX+1.0);
fL->SetParameters(1.0, 10.0);
fL->SetLineColor(kBlue+2);
fL->SetLineWidth(2);
if (nL >= 2) gL->Fit(fL, "RQ0"); // quiet, no auto-draw box
fL->Draw("SAME");
}
if (nR > 0) {
gR = new TGraphErrors(nR, xR.data(), yR.data(), exR.data(), eyR.data());
gR->SetName("gRight");
gR->SetMarkerStyle(21);
gR->SetMarkerColor(kRed+1);
gR->SetLineColor(kRed+1);
if (gL) gR->Draw("P SAME");
else {
gR->Draw("AP");
gR->GetXaxis()->SetTitle("Distance [cm]");
gR->GetYaxis()->SetTitle("MPV / reference MPV");
gR->GetYaxis()->SetRangeUser(0.75, 1.05);
}
TF1 *fR = new TF1("fR", "[0]*TMath::Exp(-x/[1])", 0.0, maxX+1.0);
fR->SetParameters(1.0, 10.0);
fR->SetLineColor(kRed+2);
fR->SetLineWidth(2);
if (nR >= 2) gR->Fit(fR, "RQ0");
fR->Draw("SAME");
}
TLegend *leg = new TLegend(0.60, 0.70, 0.88, 0.88);
if (gL) leg->AddEntry(gL, "Left (L-*)", "lp");
if (gR) leg->AddEntry(gR, "Right (R-*)", "lp");
leg->Draw();
c->SaveAs(TString::Format("%s/mpv_vs_distance.png", dirpath));
delete c;
delete gL;
delete gR;
delete leg;
}
// --------------------------------------------------------
// Main entry: loop over *.txt, make histograms, fit, save,
// write fit_results.csv, then call PlotNormalized().
// --------------------------------------------------------
void plot(const char *dirpath)
{
// prepare CSV with header
gResultsPath = TString::Format("%s/fit_results.csv", dirpath);
{
std::ofstream out(gResultsPath.Data());
if (!out.is_open()) {
std::cerr << "Cannot open results file for writing: "
<< gResultsPath << std::endl;
} else {
out << "filename,mpv,entries,chi2\n";
}
}
TSystemDirectory dir("dataDir", dirpath);
TList *files = dir.GetListOfFiles();
if (!files) {
std::cerr << "No files found in directory: " << dirpath << std::endl;
return;
}
TIter next(files);
TSystemFile *file;
while ((file = (TSystemFile *)next())) {
TString fname = file->GetName();
if (file->IsDirectory()) continue;
if (fname.BeginsWith(".")) continue;
if (!fname.EndsWith(".txt")) continue;
if (!(fname.BeginsWith("L-") || fname.BeginsWith("R-"))) continue;
TString fullpath = TString::Format("%s/%s", dirpath, fname.Data());
std::cout << "Processing: " << fullpath << std::endl;
std::vector<double> ampsNano;
if (!ReadAmplitudesNano(fullpath.Data(), ampsNano)) {
std::cerr << "Skipping file: " << fullpath << std::endl;
continue;
}
auto mm = std::minmax_element(ampsNano.begin(), ampsNano.end());
double xmin = *mm.first;
double xmax = *mm.second;
if (xmin == xmax) { xmin -= 0.5; xmax += 0.5; }
TString histName = fname;
histName.ReplaceAll(".txt", "_h");
TH1D *h = new TH1D(histName, fname, 200, xmin, xmax);
for (double a : ampsNano) h->Fill(a);
TString outpng = fname;
outpng.ReplaceAll(".txt", "_langaus.png");
outpng = TString::Format("%s/%s", dirpath, outpng.Data());
FitPeakLangauAndSave(h, fname, outpng);
delete h;
}
// normalized exponential plot
PlotNormalized(dirpath);
}
// overload with no args so ROOT can auto-run when you do: root -l plot.C
void plot()
{
plot(".");
}
Try a “wider” fit: CORE_FRAC = 0.02
Fit using (so that you see the fit result printed): "RS"
I got this in terminal:
****************************************
Minimizer is Minuit2 / Migrad
Chi2 = 1539.64
NDf = 137
Edm = 1.71954e-06
NCalls = 526
Width = 1.14733 +/- 0.124384 (limited)
MPV = 15.914 +/- 0.174982 (limited)
Area = 8343.79 +/- 64.6516 (limited)
Sigma = 7.88265 +/- 0.164137 (limited)
Processing: ./R-9.txt
****************************************
so, it means, I need to change the limits (upper and lower)?
The “(limited)” message is fine (it just confirms that you set limits for this variable).
You would get something like “(at limit)” if it really reached one.
I assume the “fit status” is 0 (“success”).
You could also try to fit it using “equal weights”: "WRS"
And maybe the loglikelihood method: "LRS"
Thanks, it looks better (I assume)
I used CORE_FRAC = 0.05 and “LRS” for fitting
but the problem is that, I need to handle multiple files automatically and for wider distributions fit is not very well (honestly, for narrower histograms also not so good)
my main task is to calculate MPV properly and fit area as much as possible (long tail not interested)
It seems to me that the Langaus cannot really describe your data well (especially for x < 12 or so in the previous post, for both “R-8.txt” and “R-7.txt”), but maybe the total area is quite fine.
If you use a “narrow window”, the fit overestimates the total area (see the red curve for x < 6 and x > 26 in the third post, for “R-4.txt”).
