Hi!

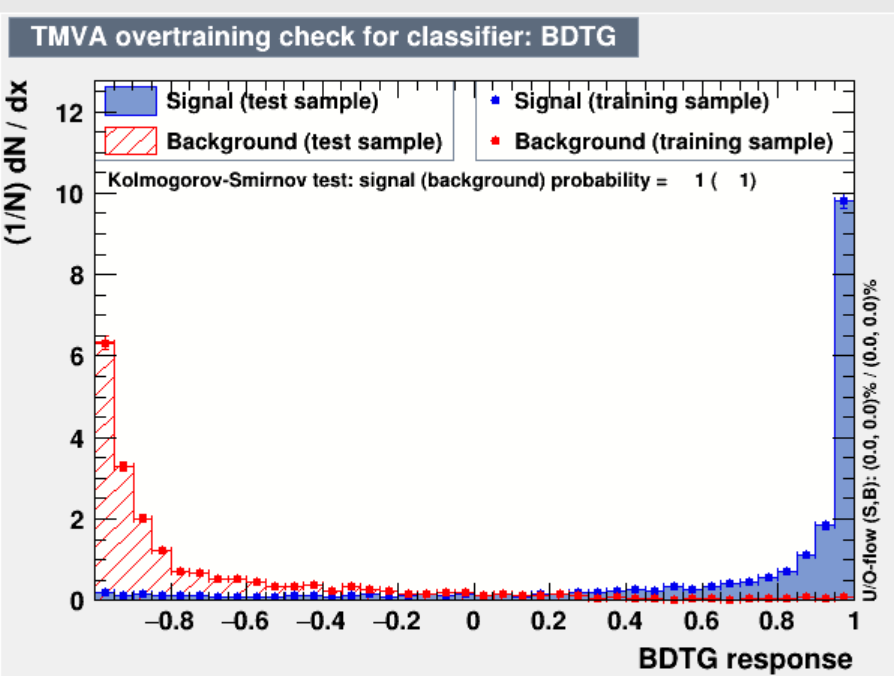

When I am performing training and testing using TMVACrossValidation.C I always get K-S probability to be exactly 1. I think then I am doing something wrong! Could check then script once and I have also attached the log files corresponding to it.
Please let me know where I have to make the changes.
TMVACrossValidation.C (5.2 KB)
Processing TMVACrossValidation.C...
create data set info dataset
DataSetInfo : [dataset] : Added class "Signal"
: Add Tree track of type Signal with 31613 events
DataSetInfo : [dataset] : Added class "Background"
: Add Tree track of type Background with 66836 events
<HEADER> Factory : You are running ROOT Version: 6.20/02, Mar 15, 2020
:
: _/_/_/_/_/ _| _| _| _| _|_|
: _/ _|_| _|_| _| _| _| _|
: _/ _| _| _| _| _| _|_|_|_|
: _/ _| _| _| _| _| _|
: _/ _| _| _| _| _|
:
: ___________TMVA Version 4.2.1, Feb 5, 2015
:
: Building event vectors for type 2 Signal
: Dataset[dataset] : create input formulas for tree track
: Building event vectors for type 2 Background
: Dataset[dataset] : create input formulas for tree track
<HEADER> DataSetFactory : [dataset] : Number of events in input trees
: Dataset[dataset] : Signal requirement: "ppgFitchi2<100 && ppbarInvMass>1.8 && ppbarInvMass<4.5"
: Dataset[dataset] : Signal -- number of events passed: 6208 / sum of weights: 6208
: Dataset[dataset] : Signal -- efficiency : 0.196375
: Dataset[dataset] : Background requirement: "ppgFitchi2<100 && ppbarInvMass>1.8 && ppbarInvMass<4.5"
: Dataset[dataset] : Background -- number of events passed: 4831 / sum of weights: 4831
: Dataset[dataset] : Background -- efficiency : 0.0722814
: Dataset[dataset] : you have opted for interpreting the requested number of training/testing events
: to be the number of events AFTER your preselection cuts
:
: Dataset[dataset] : you have opted for interpreting the requested number of training/testing events
: to be the number of events AFTER your preselection cuts
:
: Number of training and testing events
: ---------------------------------------------------------------------------
: Signal -- training events : 6207
: Signal -- testing events : 1
: Signal -- training and testing events: 6208
: Dataset[dataset] : Signal -- due to the preselection a scaling factor has been applied to the numbers of requested events: 0.196375
: Background -- training events : 4830
: Background -- testing events : 1
: Background -- training and testing events: 4831
: Dataset[dataset] : Background -- due to the preselection a scaling factor has been applied to the numbers of requested events: 0.0722814
:
<HEADER> DataSetInfo : Correlation matrix (Signal):
: ----------------------------------------------------------------
: shwrI pCosInppc ppbarLabAng ppgFitchi2 ppmFitchi2
: shwrI: +1.000 -0.001 -0.027 +0.007 +0.017
: pCosInppc: -0.001 +1.000 -0.004 +0.008 +0.022
: ppbarLabAng: -0.027 -0.004 +1.000 +0.009 -0.010
: ppgFitchi2: +0.007 +0.008 +0.009 +1.000 -0.016
: ppmFitchi2: +0.017 +0.022 -0.010 -0.016 +1.000
: ----------------------------------------------------------------
<HEADER> DataSetInfo : Correlation matrix (Background):
: ----------------------------------------------------------------
: shwrI pCosInppc ppbarLabAng ppgFitchi2 ppmFitchi2
: shwrI: +1.000 +0.099 -0.125 +0.037 +0.006
: pCosInppc: +0.099 +1.000 -0.118 +0.047 -0.025
: ppbarLabAng: -0.125 -0.118 +1.000 -0.013 -0.011
: ppgFitchi2: +0.037 +0.047 -0.013 +1.000 +0.014
: ppmFitchi2: +0.006 -0.025 -0.011 +0.014 +1.000
: ----------------------------------------------------------------
<HEADER> DataSetFactory : [dataset] :
:
:
:
: ========================================
: Processing folds for method BDTG
: ========================================
:
<HEADER> Factory : Booking method: BDTG_fold1
:
<HEADER> BDTG_fold1 : #events: (reweighted) sig: 2733 bkg: 2733
: #events: (unweighted) sig: 3033 bkg: 2433
: Training 1000 Decision Trees ... patience please
: Elapsed time for training with 5466 events: 2.4 sec
<HEADER> BDTG_fold1 : [dataset] : Evaluation of BDTG_fold1 on training sample (5466 events)
: Elapsed time for evaluation of 5466 events: 0.405 sec
: Creating xml weight file: dataset/weights/TMVACrossValidation_BDTG_fold1.weights.xml
: Creating standalone class: dataset/weights/TMVACrossValidation_BDTG_fold1.class.C
<HEADER> Factory : Test all methods
<HEADER> Factory : Test method: BDTG_fold1 for Classification performance
:
<HEADER> BDTG_fold1 : [dataset] : Evaluation of BDTG_fold1 on testing sample (5571 events)
: Elapsed time for evaluation of 5571 events: 0.409 sec
<HEADER> Factory : Evaluate all methods
<HEADER> Factory : Evaluate classifier: BDTG_fold1
:
<HEADER> BDTG_fold1 : [dataset] : Loop over test events and fill histograms with classifier response...
:
:
: Evaluation results ranked by best signal efficiency and purity (area)
: -------------------------------------------------------------------------------------------------------------------
: DataSet MVA
: Name: Method: ROC-integ
: dataset BDTG_fold1 : 0.971
: -------------------------------------------------------------------------------------------------------------------
:
: Testing efficiency compared to training efficiency (overtraining check)
: -------------------------------------------------------------------------------------------------------------------
: DataSet MVA Signal efficiency: from test sample (from training sample)
: Name: Method: @B=0.01 @B=0.10 @B=0.30
: -------------------------------------------------------------------------------------------------------------------
: dataset BDTG_fold1 : 0.846 (0.879) 0.925 (0.935) 0.968 (0.971)
: -------------------------------------------------------------------------------------------------------------------
:
<HEADER> Factory : Thank you for using TMVA!
: For citation information, please visit: http://tmva.sf.net/citeTMVA.html
<HEADER> Factory : Booking method: BDTG_fold2
:
<HEADER> BDTG_fold2 : #events: (reweighted) sig: 2785.5 bkg: 2785.5
: #events: (unweighted) sig: 3174 bkg: 2397
: Training 1000 Decision Trees ... patience please
: Elapsed time for training with 5571 events: 2.49 sec
<HEADER> BDTG_fold2 : [dataset] : Evaluation of BDTG_fold2 on training sample (5571 events)
: Elapsed time for evaluation of 5571 events: 0.415 sec
: Creating xml weight file: dataset/weights/TMVACrossValidation_BDTG_fold2.weights.xml
: Creating standalone class: dataset/weights/TMVACrossValidation_BDTG_fold2.class.C
<HEADER> Factory : Test all methods
<HEADER> Factory : Test method: BDTG_fold2 for Classification performance
:
<HEADER> BDTG_fold2 : [dataset] : Evaluation of BDTG_fold2 on testing sample (5466 events)
: Elapsed time for evaluation of 5466 events: 0.409 sec
<HEADER> Factory : Evaluate all methods
<HEADER> Factory : Evaluate classifier: BDTG_fold2
:
<HEADER> BDTG_fold2 : [dataset] : Loop over test events and fill histograms with classifier response...
:
:
: Evaluation results ranked by best signal efficiency and purity (area)
: -------------------------------------------------------------------------------------------------------------------
: DataSet MVA
: Name: Method: ROC-integ
: dataset BDTG_fold2 : 0.969
: -------------------------------------------------------------------------------------------------------------------
:
: Testing efficiency compared to training efficiency (overtraining check)
: -------------------------------------------------------------------------------------------------------------------
: DataSet MVA Signal efficiency: from test sample (from training sample)
: Name: Method: @B=0.01 @B=0.10 @B=0.30
: -------------------------------------------------------------------------------------------------------------------
: dataset BDTG_fold2 : 0.846 (0.876) 0.926 (0.937) 0.961 (0.964)
: -------------------------------------------------------------------------------------------------------------------
:
<HEADER> Factory : Thank you for using TMVA!
: For citation information, please visit: http://tmva.sf.net/citeTMVA.html
<HEADER> Factory : Booking method: BDTG
:
: Reading weightfile: dataset/weights/TMVACrossValidation_BDTG_fold1.weights.xml
: Reading weight file: dataset/weights/TMVACrossValidation_BDTG_fold1.weights.xml
: Reading weightfile: dataset/weights/TMVACrossValidation_BDTG_fold2.weights.xml
: Reading weight file: dataset/weights/TMVACrossValidation_BDTG_fold2.weights.xml
:
:
: ========================================
: Folds processed for all methods, evaluating.
: ========================================
:
<HEADER> Factory : [dataset] : Create Transformation "I" with events from all classes.
:
<HEADER> : Transformation, Variable selection :
: Input : variable 'shwrI' <---> Output : variable 'shwrI'
: Input : variable 'pCosInppc' <---> Output : variable 'pCosInppc'
: Input : variable 'ppbarLabAng' <---> Output : variable 'ppbarLabAng'
: Input : variable 'ppgFitchi2' <---> Output : variable 'ppgFitchi2'
: Input : variable 'ppmFitchi2' <---> Output : variable 'ppmFitchi2'
<HEADER> TFHandler_Factory : Variable Mean RMS [ Min Max ]
: --------------------------------------------------------------------------
: shwrI: 3.4209 2.0218 [ 1.0000 13.000 ]
: pCosInppc: 0.00029079 0.52483 [ -0.99956 0.99959 ]
: ppbarLabAng: 91.978 48.062 [ 0.0000 179.58 ]
: ppgFitchi2: 29.362 28.332 [ 0.016129 99.980 ]
: ppmFitchi2: 125.16 1079.5 [ 1.2375e-06 9999.0 ]
: --------------------------------------------------------------------------
: Ranking input variables (method unspecific)...
<HEADER> IdTransformation : Ranking result (top variable is best ranked)
: ------------------------------------
: Rank : Variable : Separation
: ------------------------------------
: 1 : ppbarLabAng : 4.335e-01
: 2 : ppgFitchi2 : 4.179e-01
: 3 : shwrI : 3.474e-02
: 4 : pCosInppc : 2.653e-02
: 5 : ppmFitchi2 : 1.065e-03
: ------------------------------------
: Elapsed time for training with 11037 events: 2.15e-06 sec
<HEADER> BDTG : [dataset] : Evaluation of BDTG on training sample (11037 events)
: Elapsed time for evaluation of 11037 events: 0.632 sec
: Creating xml weight file: dataset/weights/TMVACrossValidation_BDTG.weights.xml
: Creating standalone class: dataset/weights/TMVACrossValidation_BDTG.class.C
<WARNING> <WARNING> : MakeClassSpecificHeader not implemented for CrossValidation
<WARNING> <WARNING> : MakeClassSpecific not implemented for CrossValidation
<HEADER> Factory : Test all methods
<HEADER> Factory : Test method: BDTG for Classification performance
:
<HEADER> BDTG : [dataset] : Evaluation of BDTG on testing sample (11037 events)
: Elapsed time for evaluation of 11037 events: 0.629 sec
<HEADER> Factory : Evaluate all methods
<HEADER> Factory : Evaluate classifier: BDTG
:
<HEADER> BDTG : [dataset] : Loop over test events and fill histograms with classifier response...
:
<HEADER> TFHandler_BDTG : Variable Mean RMS [ Min Max ]
: --------------------------------------------------------------------------
: shwrI: 3.4209 2.0218 [ 1.0000 13.000 ]
: pCosInppc: 0.00029079 0.52483 [ -0.99956 0.99959 ]
: ppbarLabAng: 91.978 48.062 [ 0.0000 179.58 ]
: ppgFitchi2: 29.362 28.332 [ 0.016129 99.980 ]
: ppmFitchi2: 125.16 1079.5 [ 1.2375e-06 9999.0 ]
: --------------------------------------------------------------------------
:
: Evaluation results ranked by best signal efficiency and purity (area)
: -------------------------------------------------------------------------------------------------------------------
: DataSet MVA
: Name: Method: ROC-integ
: dataset BDTG : 0.970
: -------------------------------------------------------------------------------------------------------------------
:
: Testing efficiency compared to training efficiency (overtraining check)
: -------------------------------------------------------------------------------------------------------------------
: DataSet MVA Signal efficiency: from test sample (from training sample)
: Name: Method: @B=0.01 @B=0.10 @B=0.30
: -------------------------------------------------------------------------------------------------------------------
: dataset BDTG : 0.847 (0.847) 0.925 (0.925) 0.965 (0.965)
: -------------------------------------------------------------------------------------------------------------------
:
<HEADER> Dataset:dataset : Created tree 'TestTree' with 11037 events
:
<HEADER> Dataset:dataset : Created tree 'TrainTree' with 11037 events
:
<HEADER> Factory : Thank you for using TMVA!
: For citation information, please visit: http://tmva.sf.net/citeTMVA.html
: Evaluation done.
Summary for method BDT
Fold 0: ROC int: 0.970872, BkgEff@SigEff=0.3: 0.968
Fold 1: ROC int: 0.96947, BkgEff@SigEff=0.3: 0.961
==> Wrote root file: TMVA.root
==> TMVACrossValidation is done!
(int) 0
Regards
Souvik
