Issue Visualizing Mother Volume While Daughter Volume Is Visible

Dear @agheata The function is intended to create an air-filled box by placing an inner air volume inside an outer box volume. This outer box is then added to a volume assembly, which is subsequently placed in the top volume. When I visualize the full geometry from the top volume or the assembly, all components are correctly displayed. However, when I try to visualize the outer volume node directly, only the inner (daughter) volume is visible, while the outer (mother) volume itself is not shown.
In all volumes, I have explicitly set the SetVisContainers(true) function.

TGeoVolume *CreateHollowBar(const char *name, double length, double width,
                            double height, double delta_w, double delta_h) {

  // Create the inner box (air) to be placed inside
  TGeoBBox *innerBox =
      new TGeoBBox((std::string("InnerBox_") + name).c_str(), length - 0.1,
                   width - delta_w, height - delta_h);
  TGeoVolume *innerVolume = new TGeoVolume(
      (std::string("InnerAirVolume_") + name).c_str(), innerBox, airVolMed);
  innerVolume->SetLineColor(kBlue);
  innerVolume->SetTransparency(50);

  // Create the outer solid box (aluminium)
  TGeoBBox *outerBox = new TGeoBBox((std::string("OuterBox_") + name).c_str(),
                                    length, width, height);
  TGeoVolume *outerVolume =
      new TGeoVolume((std::string("OuterBarVolume_") + name).c_str(), outerBox,
                     aluminiumVolMed);
  outerVolume->SetLineColor(kRed);
  outerVolume->SetVisContainers(kTRUE);
  outerVolume->AddNode(innerVolume, 1, new TGeoTranslation(0, 0, 0));

  return outerVolume;
}

Hi, if you also want to see the top volume that you are drawing, you have to call:

gGeoManager->SetTopVisible();

which is by default off

Let me try to explain a bit more clearly


(attached layout of the Geomtery):

The top volume in my geometry is different—OuterBarVolume is not the top volume. The overall geometry layout starts with the top volume trd_v24c_1m, which contains several layers, each defined as a TGeoVolumeAssembly. These layers, in turn, include other assemblies. For example, one such assembly is tragwerk_block_left, which includes the OuterBarVolume created in the function I mentioned earlier.

This OuterBarVolume includes a nested volume called InnerAirVolume, which represents the air-filled inner region. When I draw the full geometry starting from the top volume, all volumes are visualized correctly. However, when I try to draw the OuterBarVolume explicitly on its own, I only see the inner air-filled volume (InnerAirVolume), while the outer box filled with aluminum (the mother volume) is not visible.

I understood correctly. When you draw a volume, it becomes the current top volume, and this can be different than the geometry ‘master’ volume, which is the one you must provide the first time you call TGeoManager::SetTopVolume. In your case, the master volume is trdv24c_1m, and when you draw this one directly, you see all volumes. However, if you call for any other volume: volume->Draw(), vol becomes the top volume and is by default NOT displayed, even if marked visible unless you call gGeoManager->SetTopVisible() before. SetTopVisible will be ignored if the volume you draw does not have the visibility flag set or is an assembly.
So in your case:

gGeoManager->SetTopVisible();
gGeoManager->GetVolume("OuterBarVolume")->SetVisibility(true);
gGeoManager->GetVolume("OuterBarVolume")->Draw();

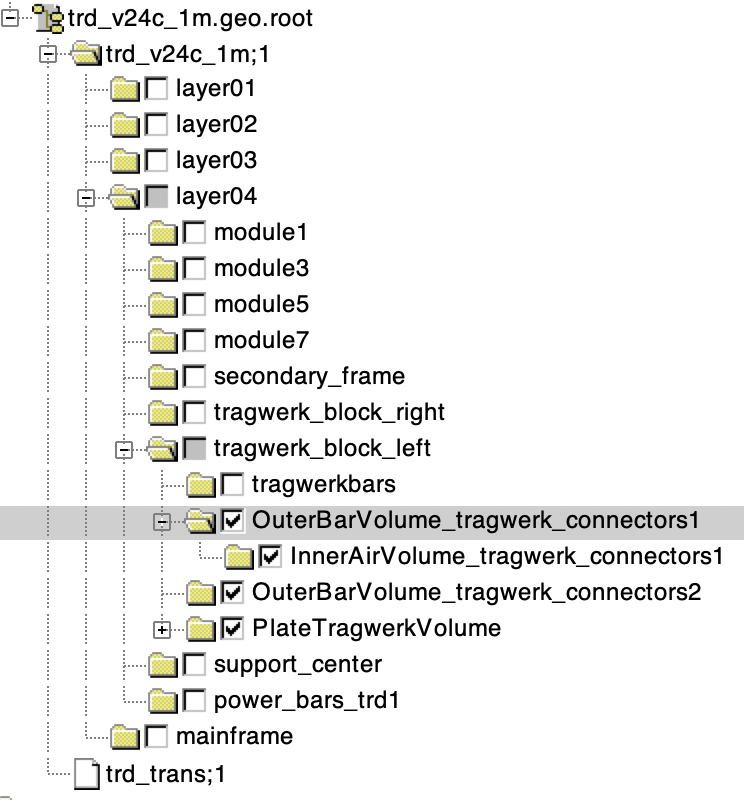

Thank you for the response. The visualization works when using a macro and enabling drawing at runtime. However, I would like to visualize it directly from the generated ROOT file using TBrowser.
