Garfield ++ installation and Geant-4 interfacing

[Ujjwal-gh]

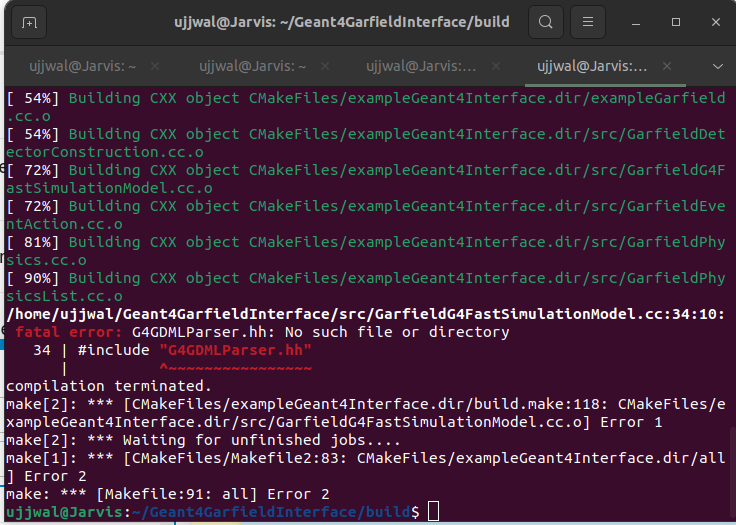

Hi, i want to study the effects of Electric field and charge particle interaction on the energy deposition inside a Proportional counter, so i was suggested to use Garfield ++ on the geant4 forum. I have installed the Garfield ++ package and tried the example. Almost every example worked but the Geant4GarfieldInterface didn’t worked.
How can i rectify this error.

Here is the commands i used to install and make the package.
export GARFIELD_HOME=/home/ujjwal/garfield/
ujjwal@Jarvis:~$ git clone garfield / garfieldpp · GitLab $GARFIELD_HOME
cd $GARFIELD_HOME
git pull
mkdir build
cd build/
source /home/ujjwal/root/build/bin/thisroot.sh
source /home/ujjwal/software/geant4/geant4-v11.2.1-mt-install/bin/geant4.sh
cmake $GARFIELD_HOME or cmake -DWITH_EXAMPLES=OFF $GARFIELD_HOME

make -j14
make install

Thanks

[hschindl]

Hi,
it looks like your Geant4 installation was built without the GDML option. Can you try re-building G4 with the CMake option “-DGEANT4_USE_GDML=ON”?

Problem in installation

I have downloaded a garfield-master version ,and then cmake successfully. But when i use ‘make -j8’ ,it feedback error as follow [2021-07-20 10-50-24 的屏幕截图] Then i skip this step ,however i couldn’t find install folder in next step. How could i deal with these problem [2021-07-20 10-54-37 的屏幕截图] I am very appreciated if you could give me some advices.

[Ujjwal-gh]

Thankyou for your reply, now i’ve implemented this and tried the example provided in the garfield ++ example folder and it worked. After that i tried 1 example provided in a paper titled “Interfacing Geant4, Garfield++ and Degrad for the simulation of gaseous detectors”. The link for the example is " GitHub - lennertdekeukeleere/Geant4GarfieldDegradInterface: A general example on how to interface Geant4 with Garfield++ and Degrad". It was having the following issue. Can you suggest me how can i rectify this

As i am very new into this, your help would be appreciable
Once again thanks

[hschindl]

No idea, sorry. I noticed that the example is quite old (last change was 5 years ago), maybe it was based on an older version of Geant4?
Is there something specific to this example that you need?

[Ujjwal-gh]

Alright, thanks for your reply. I’ll try to investigate this further.
