Gasfile issue during running

It’s pretty much what I said in my last reply:

  • Set up the environment as usual (source the thisroot.sh and Garfield setup scripts).
  • Edit the python script I sent you, make sure the name of the gas file is correct (and the path to the gas file, if the script and the path are not in the same directory).
  • Type python gain.py
  • Changing the absorber material from lead to glass won’t help much. It’s not Geant4 that’s slow but the Garfield part of the simulation. Also if you don’t care about the absorber, wouldn’t it be easier to run a standalone Garfield++ simulation? I know I’ve asked you this question before, but I didn’t understand what exactly you want to simulate.
  • As discussed before, C2H2F4 has a significant attachment cross-section so it’s indeed possible that the electrons become attached (i. e. are lost) before they can reach the high-field region close to the wire. I don’t know off-hand if that’s what happens in your case, but I think it’s plausible.
  • If you get zero avalanche size, then I would expect the simulation to be fast. Or is this a different configuration?

we want to simulate the avalanche size, and gain plots for different gas compositions in different proportions. like here i have put the gas file with c2h3f4 100%.
this is all first we want to simulate.

and avalanch size is zero gain also zero which changes i show you in previous pictures. otherwise as i was running the simulation with changes you told last time gain was also existing and avalanch size was also existing but simulation was slow.

see dear i have put the gain.py file in the
home/ahmer/Desktop/garfield/Examples/Geant4GarfieldInterface/build

and run the program and this answer occures.

In that case, using the Geant4/Garfield++ is really an overkill and I would strongly suggest to start with a standalone Garfield++ program/script. I can prepare a simple example for you if you want. Do you really want to simulate the gain in a drift tube (wire geometry) or rather for a parallel-plate chamber (i. e. in a uniform field)?

that’s a very generous of you. thanks a lot but i’m working on the interface dear. cannot just go with the garfield.

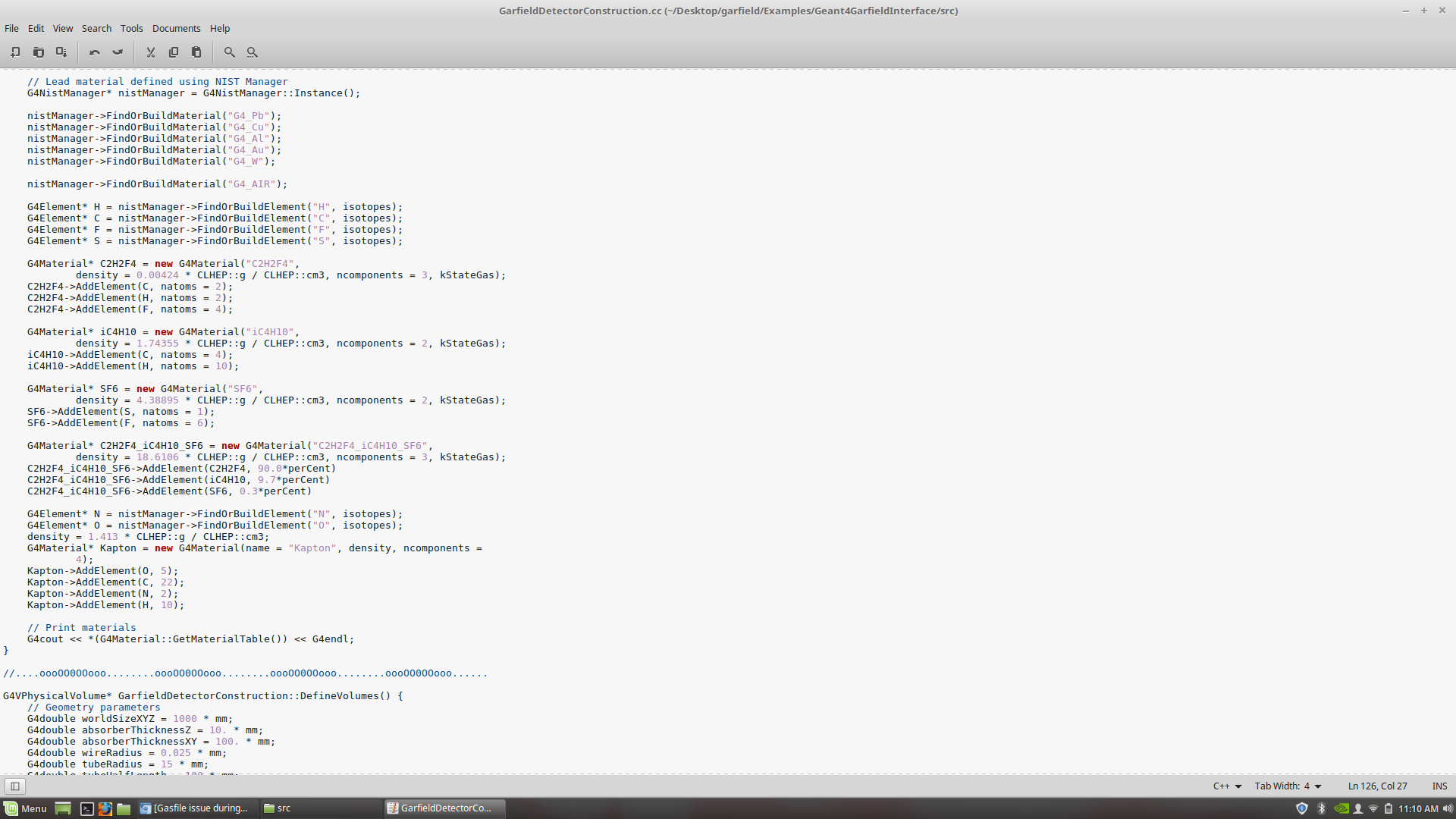

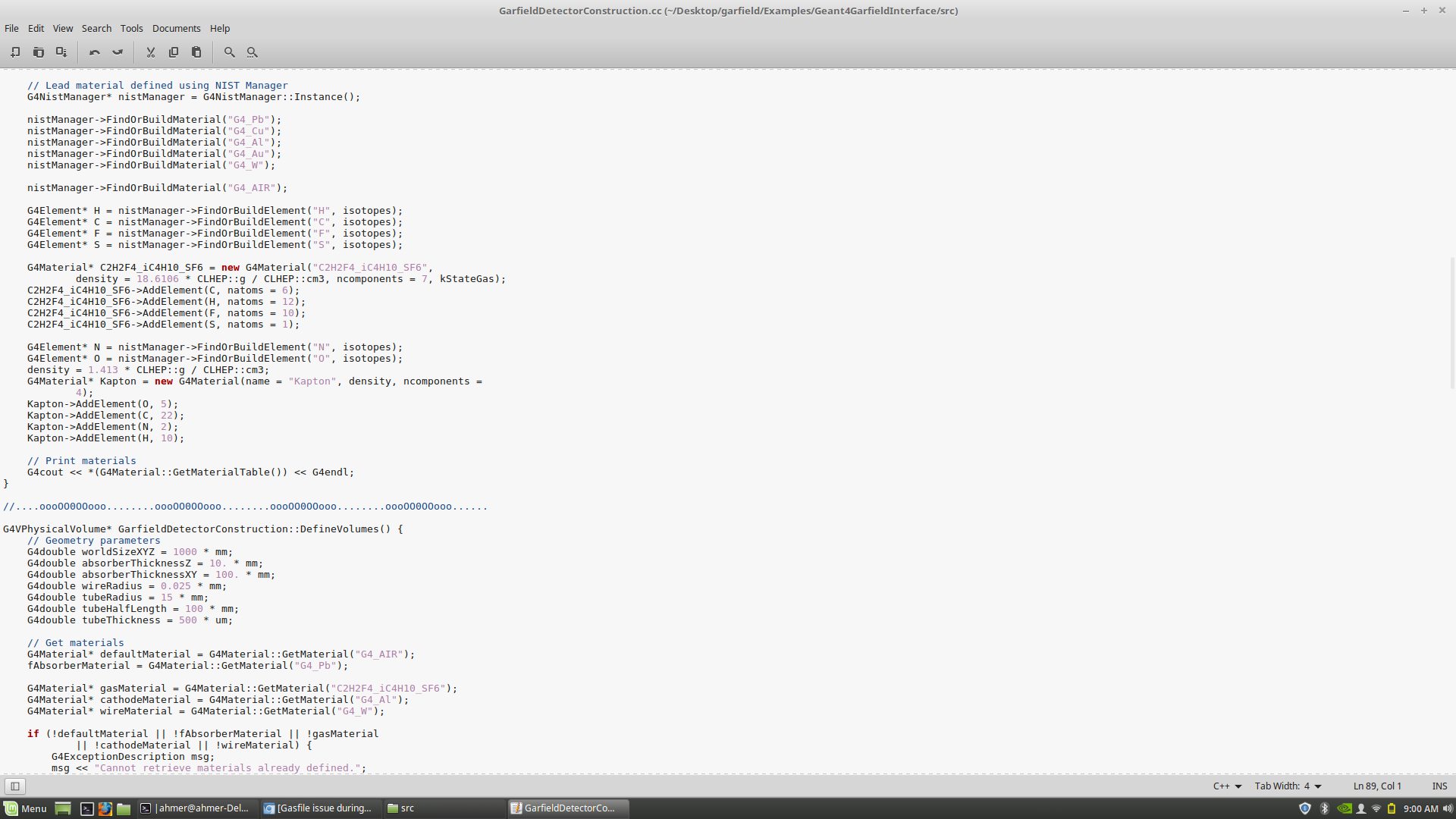

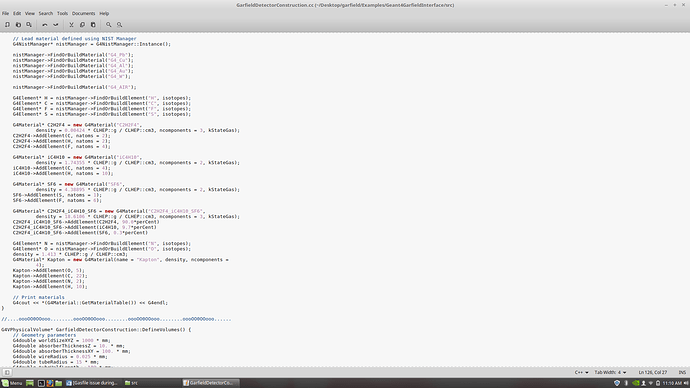

today i have tried to put the gas with three composition like C2H2F4_i_C4H10_SF6_90_9.7_0.3
most of the changes i have done as you told me. but this error is occuring. can you help me in this.

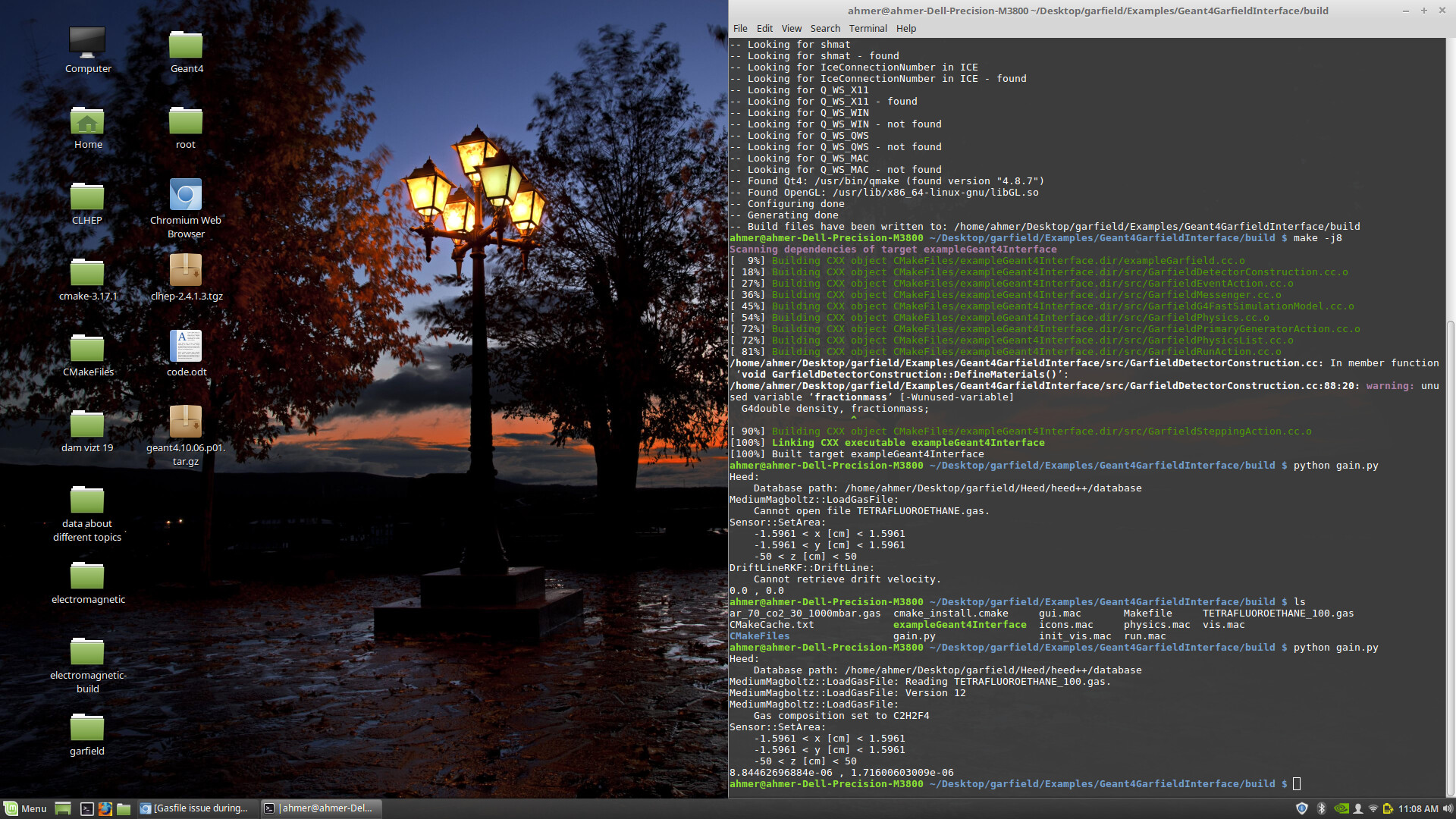

ahmer@ahmer-Dell-Precision-M3800 ~ cd Desktop ahmer@ahmer-Dell-Precision-M3800 ~/Desktop cd garfield
ahmer@ahmer-Dell-Precision-M3800 ~/Desktop/garfield cd Examples/Geant4GarfieldInterface ahmer@ahmer-Dell-Precision-M3800 ~/Desktop/garfield/Examples/Geant4GarfieldInterface mkdir build
ahmer@ahmer-Dell-Precision-M3800 ~/Desktop/garfield/Examples/Geant4GarfieldInterface cd build ahmer@ahmer-Dell-Precision-M3800 ~/Desktop/garfield/Examples/Geant4GarfieldInterface/build ls
TETRAFLUOROETHANE_iC4H10_SF6_90_9.7_0.3.gas
ahmer@ahmer-Dell-Precision-M3800 ~/Desktop/garfield/Examples/Geant4GarfieldInterface/build source /home/ahmer/Desktop/Geant4/geant4.10.06.p01-install/bin/geant4.sh ahmer@ahmer-Dell-Precision-M3800 ~/Desktop/garfield/Examples/Geant4GarfieldInterface/build source /home/ahmer/Desktop/root/test_build/bin/thisroot.sh
ahmer@ahmer-Dell-Precision-M3800 ~/Desktop/garfield/Examples/Geant4GarfieldInterface/build source /home/ahmer/Desktop/garfield/build/setup.sh ahmer@ahmer-Dell-Precision-M3800 ~/Desktop/garfield/Examples/Geant4GarfieldInterface/build cmake …
– The C compiler identification is GNU 5.4.0
– The CXX compiler identification is GNU 5.4.0
